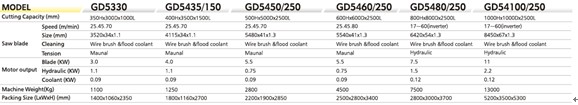

| Models |
Cutting range (mm)
(Height*Deep Throat*Travel） |
Saw blade speed
(m/min) |
Saw band size
(mm) |
Main motor power
(kw) |
Dimensions
(mm) |
| GD54100/250 |
1000H*1000D*2500L |
17~60(inverter) |
8450*67*1.3 |
11 |
5200*3500*5300 |
GD54100/250
Vertical
Mater Band
Sawing Machine
Main features of the machine
?Guiding of feeding adopts double- linear guiding rail,
with small friction coefficient and long service life.
?Feeding of workpiece uses DC motor screw rod.
with stable feeding and stepless speed regulation.
?Possible for installing electric material feeding.
material supporting table for convenient material feeding.
?Reasonable design of working table is convenient for saw blade change.
Product name:GD54100/250
Publish time:2010-12-8 0:00:00
|
